Merida eOne Sixty 500 Dual Suspension E-Bike
On Sale
$4,999.00  $6,999.00
4 payments of
$1,249.75
Own it, interest
free from $10 per
week
100% SECURE - Pay with Paypal or all major credit cards
Out of stock

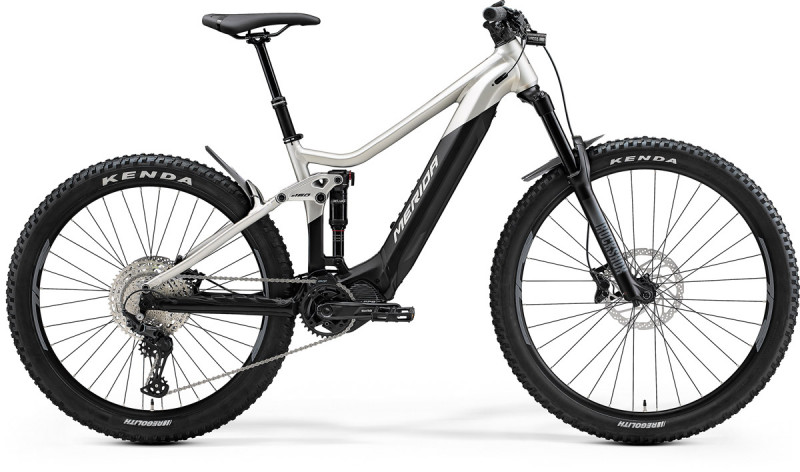

Merida eOne-Sixty 500 Dual Suspension E-Bike 2022

Comes with 12 months free service.

The 2022 model eONE-SIXTY 500 from Merida is a highly capable eMTB that incorporates the brand's extensive eMTB know-how. The all-aluminum frame is sleek and houses a high-capacity 630 Wh battery and powerful Shimano EP8 drive unit, offering plenty of power and range for tackling challenging trails.

The bike also features long-travel RockShox suspension, powerful Shimano brakes, and a refined drivetrain, providing excellent control and confidence on the trail. The mixed wheel size setup with a 160/150 mm travel split is a nice touch, allowing riders to enjoy the benefits of both wheel sizes.

With its proven MTB geometry and tough all-aluminum frame, the eONE-SIXTY is ready for anything you can throw at it. It's no surprise that this bike has received multiple awards and accolades, with industry publications praising its handling and performance. Overall, the eONE-SIXTY 500 is an excellent choice for riders looking for a highly capable and versatile eMTB.


Here are some benefits of mid-drive e-bikes over hub-drive e-bikes:


Efficient Use of Gears: Mid-drive e-bikes can make use of the bike's gears, which can improve efficiency and make it easier to climb hills. The motor is directly connected to the bike's drivetrain, which means that it can benefit from the gear ratios that the bike has. This allows the motor to operate more efficiently at different speeds and inclines.

Improved Handling: Mid-drive e-bikes are generally lighter and more balanced than hub-drive e-bikes. The motor is located in the center of the bike, which means the weight is distributed evenly. This makes mid-drive e-bikes easier to handle, especially in tight spaces or when riding at slow speeds.

Greater Torque: Mid-drive e-bikes have more torque, which means they can tackle steep hills and rough terrain with ease. They also provide a more natural riding experience because the motor is directly connected to the pedals.

Longer Battery Life: Mid-drive e-bikes use the motor more efficiently, which means they can go further on a single charge than hub-drive e-bikes. This is particularly beneficial for people who need to commute long distances or use their e-bikes for extended periods of time.


01. FRAMEeONE-SIXTY LITE III; MAT aluminium; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube;
02. SIZESXS-S-M-L-XL
03. FORKRock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset; 29x2.8" max WHS
04. REAR SHOCKRockShox Deluxe
05. DRIVE UNITShimano EP8; 85Nm
06. BATTERYShimano E8036 630Wh / Shimano E8035 504Wh for XS only
07. BATTERY CHARGERShimano EC-E6002; 2A charging current
08. DISPLAYShimano SC-E5003A
09. MODE SWITCH-
10. REAR DERAILLEURShimano Deore RDM5100 11
11. SHIFTERSShimano Deore M5100 11
12. DROPPER POST LEVERShimano SL -MT500-IL
13. BRAKE - FRONTShimano M4204; 4 piston
14. BRAKE - REARShimano M4204; 4 piston
15. ROTOR - FRONTShimano RT30; 203 mm
16. ROTOR - REARShimano RTEM300; 203 mm
17. CHAINRINGShimano CRE70-B; 34 ATC
18. CRANKShimano FCEM600; 165 mm for all sizes
19. CHAINKMC e11S EPT
20. CASSETTEShimano M5100; 11-51 ATC; 11 GER
21. PEDALSVP VPE-537
22. HANDLEBARMERIDA EXPERT eTR; 780 WHB; 20 RHB
23. HANDLEBAR STEMMERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
24. STEM LENGTH40 mm all sizes
25. SEAT POSTMERIDA COMP TR; 30.9 DSP; 0 SSB; XS/S 100 SPT - M/L 125 SPT - XL 150 SPT
26. SADDLEMERIDA COMP SL; V-mount
27. HUB - FRONTShimano MT400-B; 110x15 WHF; 32 SPH; Centerlock
28. HUB - REARShimano MT400-B; 148x12 WHR; 36 SPH; Centerlock
29. AXLE - REARMERIDA EXPERT TR; including removeable lever, 6/4mm allen key
30. RIMSMERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
31. TYRE - FRONTKenda Regolith; 29x2.4"; wire
32. TYRE - REARKenda Regolith; 27.5x2.6"; wire
33. LIGHT FRONTLEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
34. LIGHT REARUSB REAR Light CG-214RG
35. OTHER-
36. MAX RIDER WEIGHT140kg
