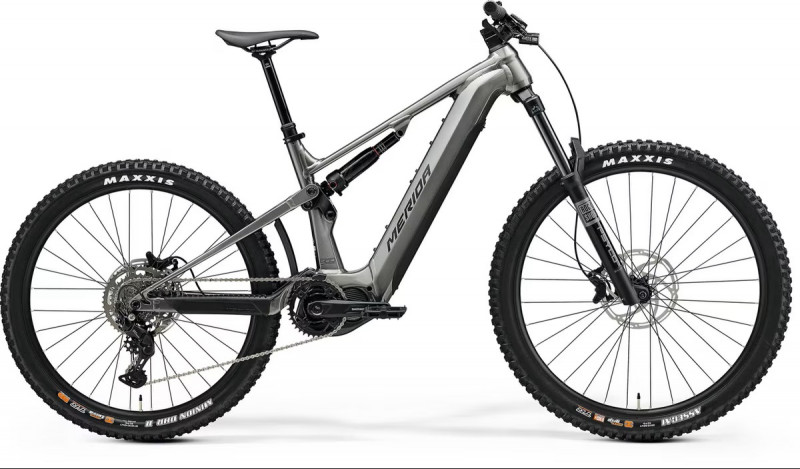

2025 Merida eOne Sixty 400 IV1 Electric Dual Suspension Bike

The perfect first enduro e-MTB from Merida, a renowned German brand with high-quality bikes made in Taiwan. The new eONE-SIXTY 400 features our latest fourth-generation aluminium frame, offering impressive performance at an incredible price. With a user-removable 630 Wh battery, you'll have plenty of range, and the powerful Shimano EP801 drive unit will help you conquer any climb. Thanks to modern e-enduro geometry, and a mix of bump-taming 29" front and agile 27.5" rear wheels, it's a fun and capable enduro machine. Proven Shimano brakes, drivetrain, and RockShox suspension will keep you in control.

The latest eONE-SIXTY ensures every descent is an exhilarating ride. Its all-aluminium frame offers maximum value, paired with a powerful drive unit and a removable 630 Wh battery, now with a key lock. The only reason to stop will be because you want to. With geometry derived from the award-winning ONE-SIXTY enduro range, you'll handle the toughest climbs and the most thrilling descents, while the FAST kinematic suspension delivers 174 mm of rear travel paired with 170 mm at the front. Designed for low maintenance with a flexstay system, this model handles any trail with ease, and it's compatible with the latest coil shocks. Mixed-size 29" front and 27.5" rear wheels come standard for playful handling, but you can switch to a full 29er setup without affecting the geometry, thanks to our flip chip design. Low standover heights across all sizes let you choose between a longer frame for stable handling or a shorter one for agility. Some models also feature our innovative 30-230 mm travel-adjustable dropper post.

Highlights:

Fourth generation LITE aluminium frame with 174 mm rear wheel travel

RockShox Psylo Silver fork with 170 mm travel and Super Deluxe rear shock

High-quality Shimano CUES wide range 9-speed drivetrain

User-removable Shimano 630 Wh battery with powerful Shimano EP801 drive unit

Mixed wheel sizes as standard with an option for full 29"

Reach-based AGILOMETER sizing system with long-travel dropper posts on all sizes

We also provide 12 months of free servicing on this bike to keep it in peak condition.

FRAME eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

SHOCK Rock Shock Deluxe

FORK Rock Shock Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

BRAKE - FRONT Tektro Gemini M535; 4 piston

BRAKE - REAR Tektro Gemini M535; 4 piston

ROTOR - FRONT Tektro TR203-45; 203mm

ROTOR - REAR Tektro TR203-45; 203mm

CHAIN Shimano LG500

CHAINWHEEL FSA 1x Steel Chainring; 36 ATC

CRANK/SIZE Shimano FC-EM600; 165 mm for all sizes

BB SET included

DERA - FRONT

DERA - REAR Shimano Cues U4000; GS

FREEWHEEL Shimano LG400-9; 11-46 ATC; 9 GER

PEDAL VP VPE-533

GRIP MERIDA EXPERT EC

H-BAR MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB

H-B STEM MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

STEM/SIZE 40 mm all sizes

HEAD SET Acros ICR MERIDA EXTERNAL neck w/ Blocklock

HUB - FRONT Shimano TC500-B; 15x100 WHF; 32 SPH; Centerlock

HUB - REAR Shimano TC500; 12x148 WHR; 32 SPH; Centerlock

AXLE - FRONT

AXLE - REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key

RIM MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

RIM TAPE

SADDLE MERIDA COMP SL; V-mount; incl. MERIDA minitool

SEAT CLAMP MERIDA EXPERT

SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT - XL: 230 SPT

SHIFTER - FRONT Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post)

SHIFTER - REAR Shimano Cues U4000-9

INNER TUBE 27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)

TYRE - FRONT Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip

TYRE - REAR Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

BOTTLE CAGE

CARRIER

FENDER EOF-204

KICKSTAND

LIGHT - FRONT LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount

LIGHT - REAR CG-404RG-BLK

FRAME LOCK

DRIVE UNIT Shimano EP801; 85Nm

DRIVE COVER CR-010 + CR011

BATTERY Shimano EN806; 630Wh

BATTERY CHARGER Shimano EC-E6002; 2A charging current

BATTERY LOCK Abus key

DISPLAY Shimano SC-EN500
